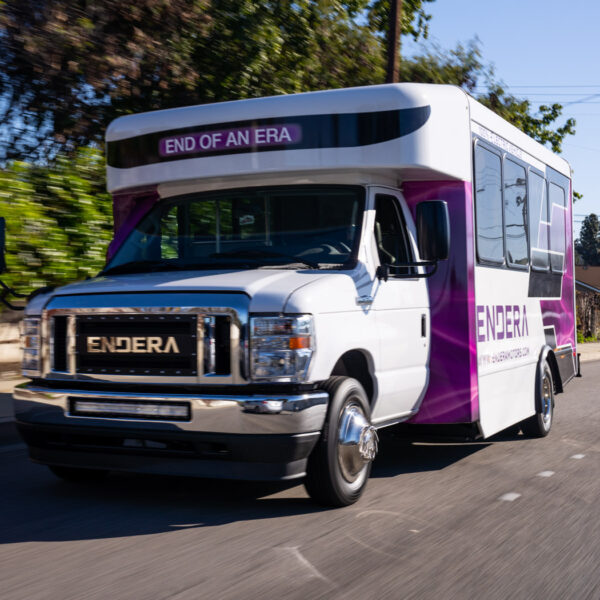

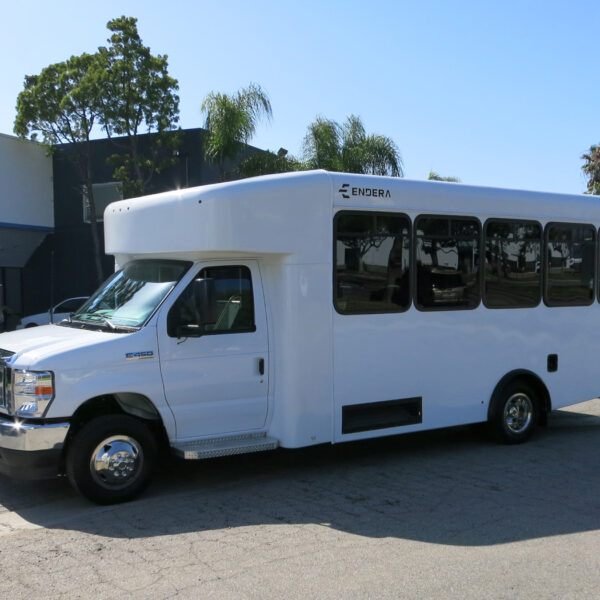

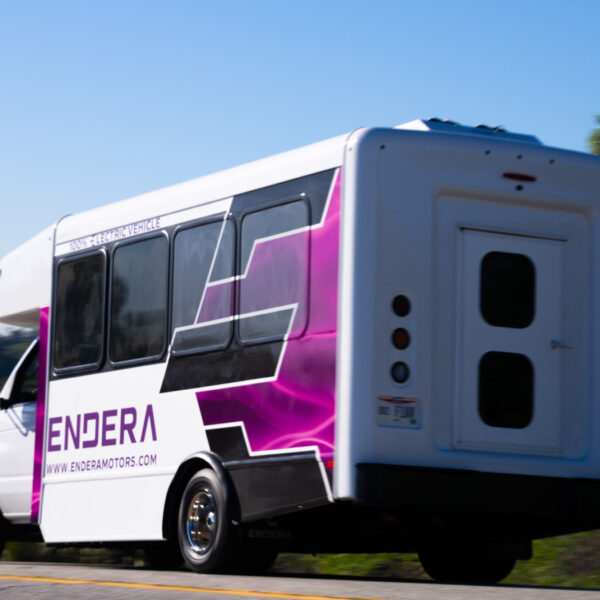

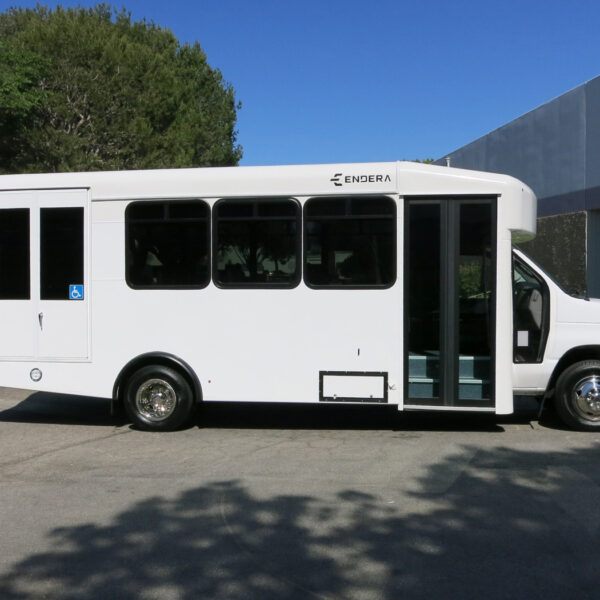

The Endera B Series line of all-electric shuttle buses incorporates an innovative combination of advanced engineering and high-quality components which provides an ideal lightweight, versatile solution for many transportation and business solutions. It can accommodate up to 20 passengers, while wheelchair passengers can be safely loaded with the optional wheelchair lift. Endera will work closely with you to identify your unique electric vehicle configuration.

Spec Sheet
Floor Plans
Standard Features
  • Overall Length: 23′, 24′, 26′, 28′
  • Overall Height: 9’ 6” (varies by floorplan)
  • GVWR: 14,500 lbs
  • Wheelbase: 158, 176, 186, 212 in
  • Passenger Capacity: Up To 20 Passengers
Drivetrain and Features

Electric Powertrain:

  • Maximum Speed: 75 mph
  • All Electric Range: 150 Miles
  • Charge Time: 50 min – DC fast charge, 8 hrs by AC LVL2 charger
  • Charge Capability: 20kW AC & 70kW-180kW DCFC
  • Peak Power: 225 kW
Additional Options

Endera EV Features:

  • Endera is a Vertically Integrated EV & Body Manufacturer
  • EV Installation & Body Built Under One Roof in Ohio
  • 150 kwh Battery Packs Located within Frame Rails
  • Liquid Cooled and/or Heated Battery Packs
  • Battery Safety Sensor Monitoring System
  • DC Fast Charge or Level I and Level II Charging Capabilities
  • Cascadia iM225 Electric Motor / Two-Speed Transmission
  • Ford E450 & Chevrolet Express Cutaway Chassis Options
  • Charge Port Located In Front Grill w/LED Charge Light
  • E-Stop Switch Located in Reach of Driver for Added Security



Popular Optional Features:

  • Passenger Air Conditioning & Heater Options
  • Luggage Storage (Rear, Interior, Overhead)

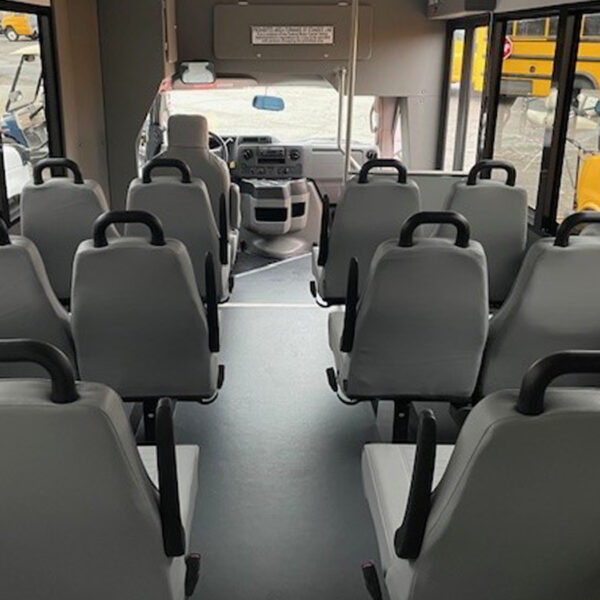

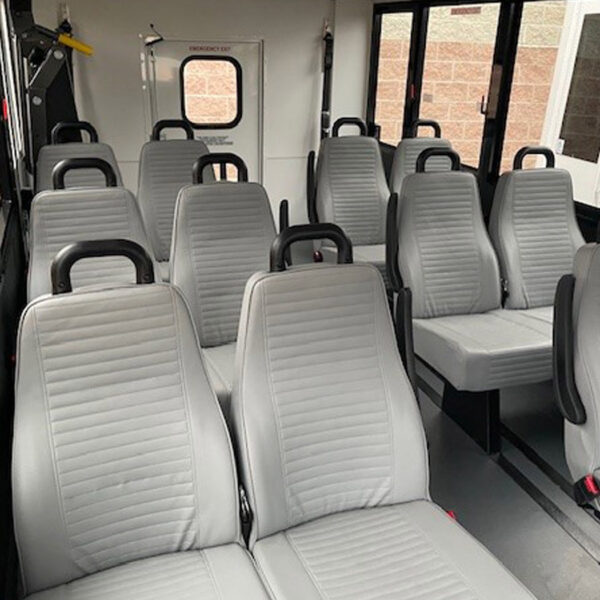

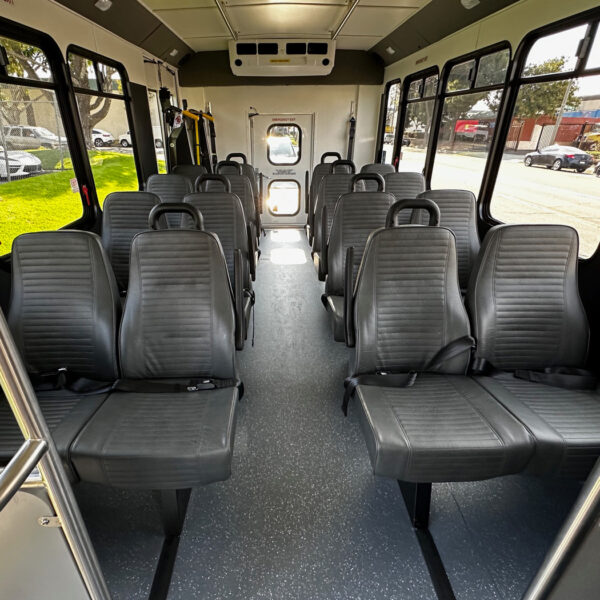

  • Seating Options ( Low, Mid or High Back)
  • Entry & Overhead Grab Rails

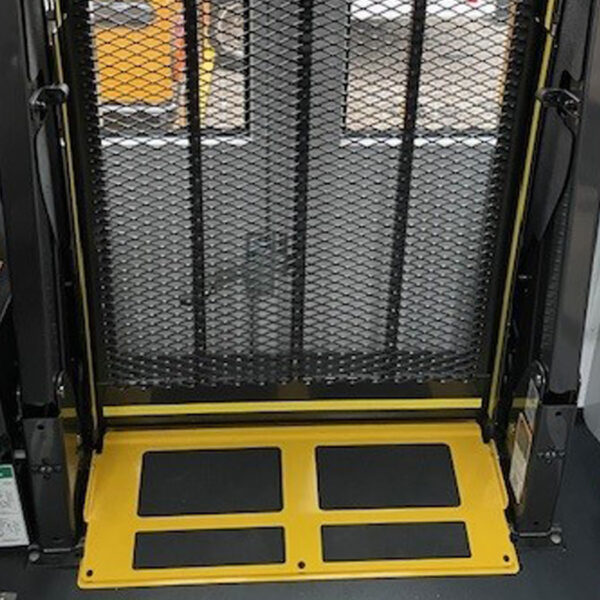

  • Paratransit ADA Compliant Lifts & Securement Systems
  • Exterior Paint & Graphic Options





Endera Body Features:

  • 7yr/200,000 Mile Altoona Test Scheduled
  • 24′, 26′, 28′ Body Length Options (Weight Limitation by Floorplan)
  • 96″ Body Width, 116″ Height, 79″ Interior Headroom
  • Fiberglass Front & Rear Caps
  • One Piece Seamless Roof Panel
  • Larger Driver Curbside View Window
  • Electric Powered Entry Door – Standard
  • FRP Exterior Panels – Polystyrene Insulation
  • Welded Tube Style Cage Construction, Puck Mounted
  • Large 36″x36″ Passenger Windows
  • FRP Interior Panels – Optional Material Available
  • ADA Floor Plans Available – Front or Rear Lift Locations
  • Non-Skid Flooring or Rubber Flooring Available
  • Intermotive FlexTech Electrical System – Standard
  • LED Interior & Exterior Lighting – Standard
  • Meets or Exceeds Applicable FMVSS Requirements
  • Ford QVM Certified Manufacturer

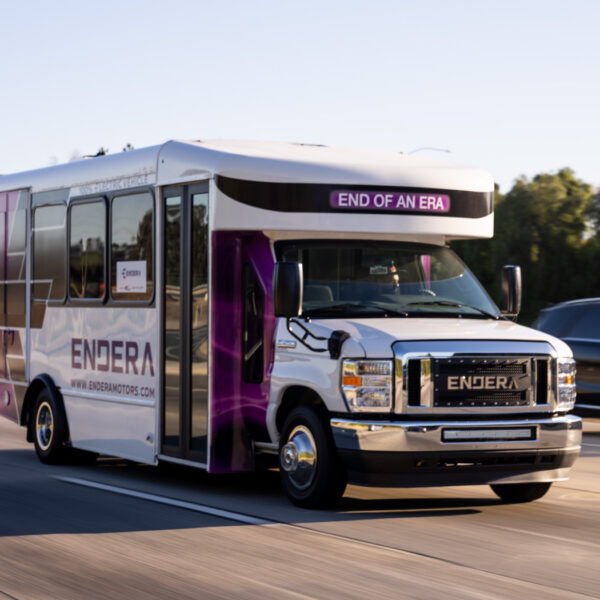

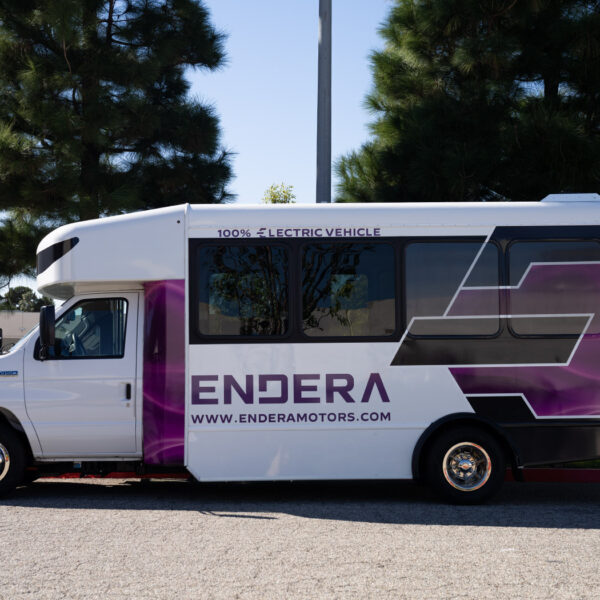

Photo Gallery
